مدل شماره.: | JTS-128AD | اتهام اتوماسیون: | نیمه اتوماتیک |
---|---|---|---|
تمیز کردن دقت: | تمیز کردن صنعتی عمومی | کنترل کردن: | دیجیتالی |
اصل: | نظافت فیزیکی | تایمر: | 1-30 دقیقه قابل تنظیم |
بخاری: | 20-80C قابل تنظیم | فراوانی: | 28 کیلوهرتز / 40 کیلوهرتز |
ماده مخزن: | SUS304 / SUS316L | پایان سطحی: | درمان آبکاری سخت (20+ میکرون) |
مواد مسکن: | فولاد ضد زنگ | قدرت اولتراسونیک: | سفارشی |
قدرت بخاری: | 1.5 کیلو وات | 3 کیلو وات | 4.5 کیلو وات | ظرفیت مخزن: | 2000 لیتر |
نوع مبدل: | نوع BLT اصلی | ||
برجسته کردن: | 2000L marine engine ultrasonic cleaner,industrial ultrasonic cleaner with oil filter,large capacity marine parts cleaner,industrial ultrasonic cleaner with oil filter,large capacity marine parts cleaner |

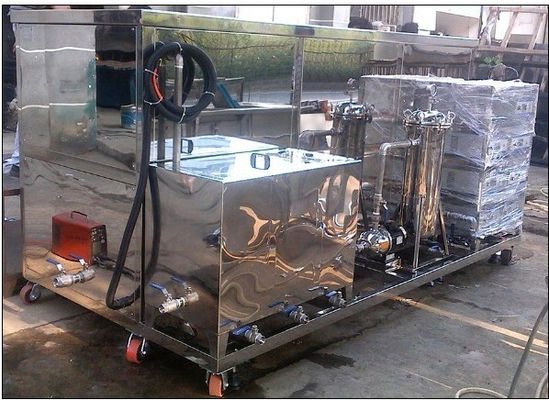

This marine engine parts ultrasonic cleaner utilizes advanced ultrasonic technology to effectively clean and degrease ship components including engines and wheels. The ultrasonic bubbles penetrate hard-to-reach areas that manual or traditional cleaning methods cannot access.
The tank size is fully customizable to meet specific customer requirements. The system efficiently removes rust, carbon deposits, paint, and heavy oil without damaging parts when used with appropriate cleaning solutions.
Model | JTS-1006 | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 |
---|---|---|---|---|---|---|
Tank's Working Dimension (mm) L1 | 305 | 355 | 406 | 500 | 500 | 500 |
Tank's Working Dimension (mm) W1 | 250 | 305 | 305 | 355 | 406 | 460 |
Tank's Working Dimension (mm) H1 | 305 | 355 | 460 | 500 | 500 | 550 |
Overall Dimension (mm) L2 | 485 | 535 | 586 | 680 | 710 | 710 |
Overall Dimension (mm) W2 | 430 | 485 | 485 | 535 | 586 | 640 |
Overall Dimension (mm) H2 | 700 | 750 | 680 | 720 | 720 | 770 |
Tank's Total Capacity | 23L | 38L | 56L | 88L | 101L | 126L |
Tank's Material | SUS304 / SUS316L | |||||
In-Tank Surface Finishing | Hard-Cr Plating Treatment (20+ microns) | |||||
Housing's Material | Stainless steel | |||||
Ultrasonic Frequency* | 28kHz / 40kHz | |||||
Ultrasonic Transducer | 6 | 12 | 18 | 24 | 30 | 36 |
Ultrasonic Output Power (Max.) | 300W | 600W | 900W | 1200W | 1500W | 1800W |
Electronic Generator | KG300 | KG600 | KG900 | KG1200 | KG1500 | KG1800 |
Heater's (Hot Plate) Power | 1.5kW | 3kW | 4.5kW |

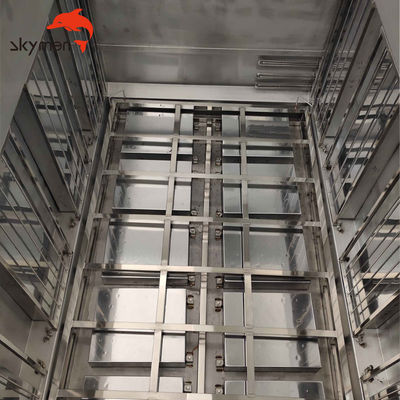

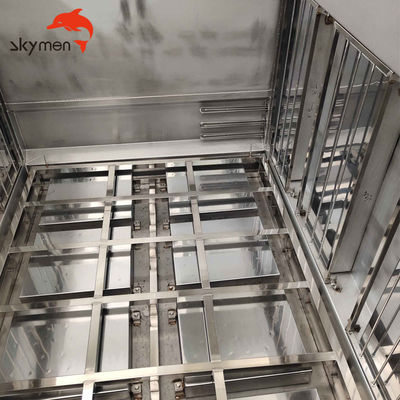

The JTS series single tank ultrasonic cleaner system features a replaceable transducer box and generator. These components can be either built-in or separate while working together to perform the ultrasonic cleaning process. The transducer box is immersible and can be mounted on one side, both sides, or the bottom of the tank.

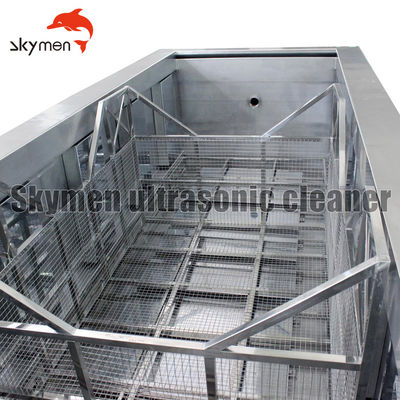

The number and placement of transducers are carefully selected to maximize cleaning efficiency for any parts cleaning application. Both tank dimensions and transducer box specifications are available as custom options. The system delivers exceptional cleaning performance for molds and various parts, with an optional stainless steel basket available.
