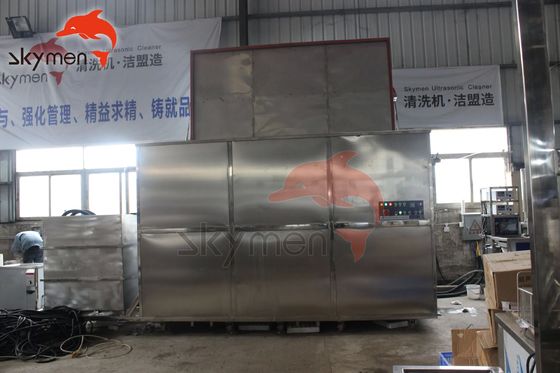

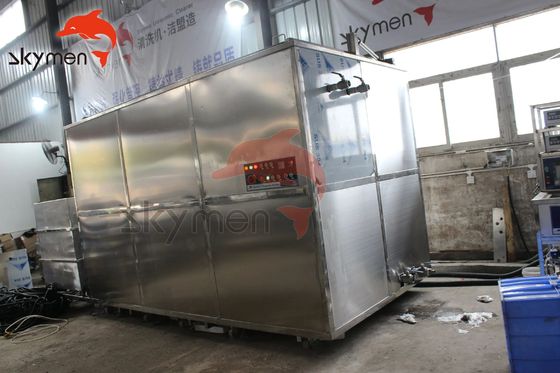

Large Industrial Ultrasonic Cleaning Tank 8000L for Air Cooler
Please choose the size that fits your needs, or contact us for professional suggestions:
Detailed Specifications
| 1 | Model | JP-11152ST |
| 2 | Parameter | Function: Ultrasonic cleaning
Ultrasonic Frequency: 28/40kHz (other frequency can be customized)
Tank Material: SUS 304 (SUS 316 can be customized)
Thickness of tank: 3mm
Inner tank dimension: 2500*2000*1700mm
Tank Capacity: 8500L
Transducer: 1152pcs
Ultrasonic Power: 0-57600W
Heating Power: 36000W
Time setting of Ultrasonic: 0~99 hours
Temperature setting: Room temperature ~ 95°C adjustable
Drain value: Available
Water inlet/outlet: Available
Generator: 6 sets
Generator power control: 1800W
Generator shelf: Available
Basket: Available
Basket load: 500KG or more |
| 3 | Packing | By wooden case (No logs, free of fumigation) |
| 4 | Power supply | 380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
| 5 | Warranty | 1 year warranty for spare parts, lifetime technical support |
| 6 | Certificate | CE, RoHS; FCC, REACH |
| 7 | Lead time | 20~30 working days after deposit |
| 7 | Optional functions | Filtration cycle system: Available; capture dirty water, recycle clean water
Lifting system for basket: Available; take the basket up and down
Dunking system: Available; Speed up cleaning
Bubbling: Available; need to connect air compressor
Electrolysis: Available; For cleaning more complex structure mold
Cooling system: Available; To cool down inflammable and explosive
Constant temperature: Available;
Roller barrel: Available; for clean coins and big quantity parts
Anti-explosion electric box: Available;
Deionized(DI) water: Available
Double/Multi frequency: Available; 28/40/20/68/80/132KHz
Other functions: Negotiate via email |

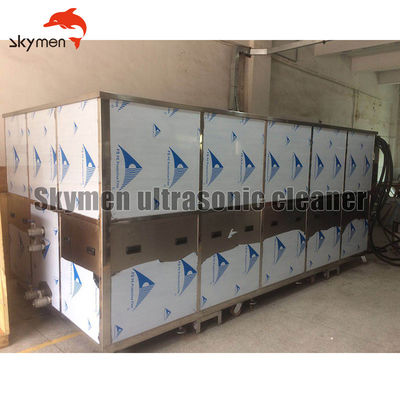

More Size and Capacity Options
Key Features
- Stainless steel tank has resistance to wear and long work life
- Tank capacity: follow demand

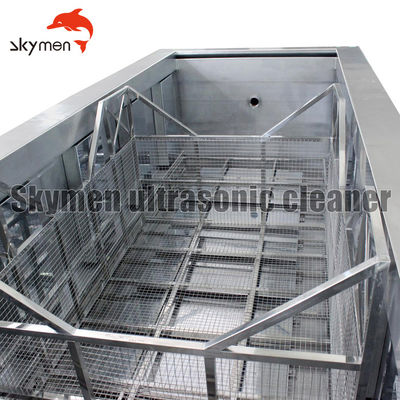

- Includes stainless steel basket
- Uses tap water, industrial alcohol or solvent cleaner for higher cleaning requirements
- Industrial control chip microcontroller with flexible circuit boards control for security and stability
- Includes drainage, basket, lid and multi-direction castors
- Transducer: Korea technique
- PCB board is independent research and development design production by Skymen
- Can be applied to clean cast iron, steel, stainless steel, brass, bronze
Advantages of Ultrasonic Cleaning
Compared with traditional methods, ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other types of grime that build up on objects. Grooves, internal passageways, hidden corners, seals, and other hard-to-reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts.
Benefits include:
- No harm to objects
- Significant cost and labor savings
How Ultrasonic Cleaning Works
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Applications
Electronic factory, utensil, hardware, machinery, communication, biological, medical instrument, glasses, optical, textile, auto parts, ships, aviation, mining area, commercial cleaning.
Kitchen industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
Warranty
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty period, replacement parts will be sent free of charge. Technical support is also available after 1 year.
Cleaning Effect
Frequently Asked Questions
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck parts cleaning (remove oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts, etc. Higher precision goods require higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe and will not damage your objects.
Q: What cleaning solution should I use?
A: A large variety of different formulas are designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing after cleaning cycles necessary?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.

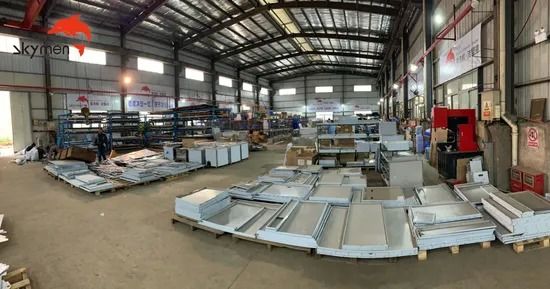

About Skymen Cleaning Equipment
Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in ultrasonic cleaner field for more than 14 years. Our main products are ultrasonic cleaners with different capacities.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. We provide high quality products and after-sales services. Not only standard ultrasonic cleaners, but any non-standard models can be designed by our engineers.
